Best Price Free Shipping!!! TDA2030A amplifier board / AC-DC power supply available / 12V single supply /Electronic Component

Product ID : 1000001599172

Price : $4.00

Discount Price : $3.40

VISIT WEBSITE NOW

Item specifics

•
  is_customized:
  Yes



•
  Operating Temperature:
  new



•
  Dissipation Power:
  new



•
  Type:
  Logic ICs



•
  Application:
  Computer



•
  Supply Voltage:
  new



•
  Model Number:
  new



•
  Condition:
  New


Product Description

note!! below $ 7 $ no tracking number

...

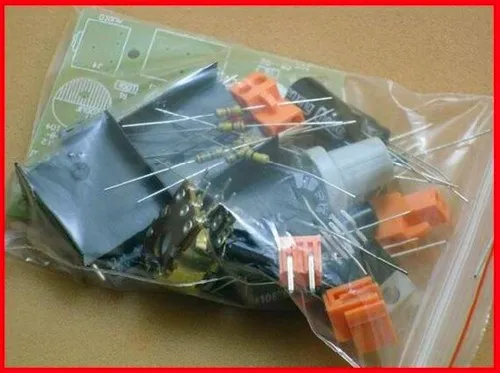

 2.0 pairs of channel pure stage / TDA2030A amplifier board / AC-DC power supply available / 12V single supply kit

...







...

Product Description

Performance parameters:

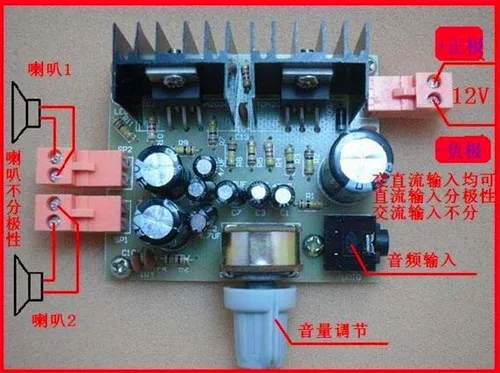

Input voltage: AC9-15V or DC9-15V (DC input polarity note distinguish points, regardless of the AC input polarity)

Output power: Po = 15W + 15W (RL = 4Ω)

Output Impedance: 4-8 Ω

PCB Size: 64x54mm, thickness: 1.6mm, Material: FR-4

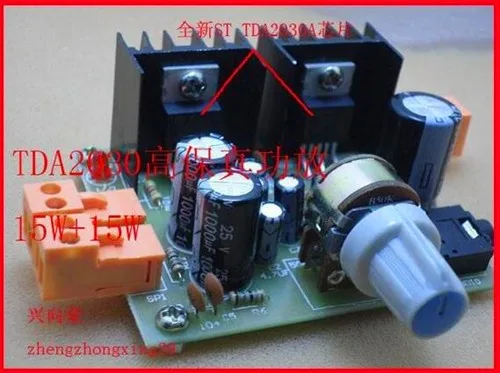

 After the pure power amp is simply the volume of the amplifier, without preamplifier, audio input directly without any modification after pushing pronounce speaker amplified sound authentic, pure and natural. The amplifier board is to use two sound pretty classic ST's TDA2030 amplifier IC composed of pure power amp, a single power supply, single-supply input voltage AC 9V-15V, reasonable layout elements, strong power (15Wx2), almost no static noise , an excellent sense of hearing, fewer external components, easy to install, very suitable for conversion or installation of home audio system, widely used in a variety of speakers, most of the market 150 -200 computer speakers, are used TDA2030 amplifier IC production.

I. Circuit Description:

The power amplifier integrated circuit TDA2030 amplifier board is composed of the center, reasonable layout element, almost no static noise, high fidelity, low distortion, fewer external components, simple assembly, power 15W + 15W) and other characteristics, suitable for electronic enthusiasts and audiophiles DIY, student assembly.

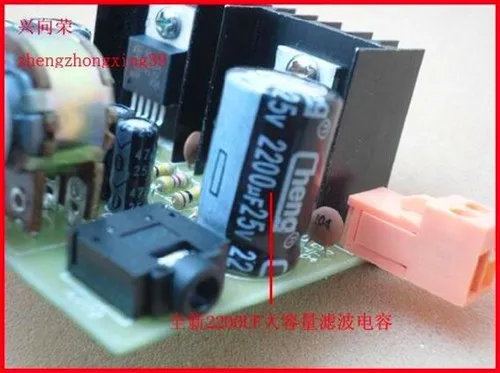

D is the rectifier diode circuit, C11 for the filter capacitor, C12, C13 for the high-frequency decoupling capacitors; RP for the volume control potentiometer; IC1, IC2 is a two-channel amplifier IC; R1, R2, R3, C1 ( R7, R8, R9, C6) for the bias circuit amplifier IC input, as the circuit is a single power supply, amplifier IC input DC voltage is half the supply voltage circuit to work properly; R4, R5, C3 (R10 , R11, C8) form a negative feedback loop, change R4 (R10) of the feedback coefficient can be resized. C2 (C7) is the input coupling capacitor, C4 (C9) is the output coupling capacitor; when the circuit is connected with the inductive load speaker, R6, C5 (R12, C10) to ensure high frequency stability.

...

 Welcome to our shop, enjoy the shipping here, you can contact with me freely if any question, usually we will send datasheet,code via email . hope to do business with you.



 payment:

we only accept the payment by credit card,western union.

We apologize that we cannot accept other payment methods, such as cheque or postal orders .

Shipping:

1. We Ship to Worldwide, but Italy, Nigeria, Brazil will take long delivery time .
2. Before buying, Please make sure your address is correct. Or not, please correct it before payment
3. Ship to worldwide from Hong Kong within 12-24 hours after payment completed received, and will give you the tracking number asap. sometimes we will send it by flat post air mail if just one low price order.Hope you understand.
4. we advise shipping by DHL or EMS,and we have gave a discount for you,you can received it in 4-9 business days.
5. it takes about 15-30days usually if shipping by CHina/Hong Kong post air mail

Feedback:

the feedback is very important for us, pls leave me a 5 stars feedback if you are satisfied with our service and our items,or pls contact with me if there are some problem with our items.we will solve it asap.

Warranty and Return:

1. 12-months Warranty for defective items (excluding items damaged and/or misused after receipt).

Buy with confidence

1. Refund or replacement request is available only the requests within 1 week after parcel received & returning the item as the same condition as received.
2. Please contact us to request a return authorization. Your name, auction number, and reason for return should be included in the email. All items returned must contain all original packaging materials.
3. Please repack the item carefully. Items returned will be tested and a new replacement will be shipped to the buyer immediately when found defective. In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non refundable.
4. Return shipping is to be paid by the Buyer.

ABOUT US:

we have much more products, pls contact us if you need.welcome to wholesale. MUCH THANKS!!

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.1kg (0.22lb.)



•
  Package Size:
  11cm x 11cm x 11cm (4.33in x 4.33in x 4.33in)
